Geothermal heat pumps (GHPs) rank among the most energy-efficient climate control systems available today. By using the steady temperature of the earth just below the surface, they can slash energy consumption for both residential and commercial buildings. This article acjakarta, breaks down how geothermal heat pumps work, their main components, and why they’re becoming a smart choice for long-term energy savings.
The Principle Behind Geothermal Heat Pumps
Unlike air-source heat pumps, which exchange heat with the outside air, geothermal heat pumps use the earth as their thermal reservoir. Just a few feet underground, temperatures stay fairly stable throughout the year—generally ranging from 45°F to 75°F, depending on location.

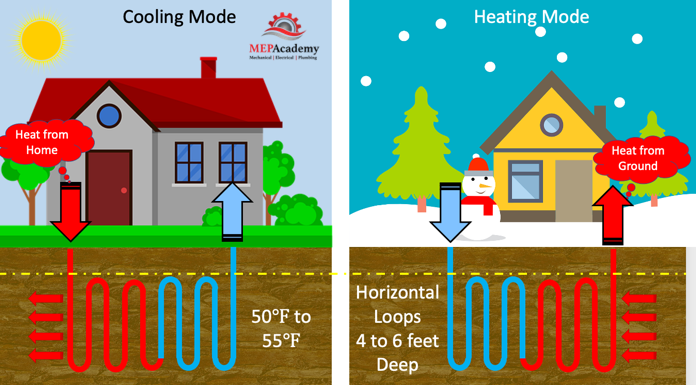

In winter, the system pulls heat from the ground to warm the building. In summer, it reverses, transferring indoor heat back into the earth. This stable temperature makes geothermal systems far more efficient than conventional HVAC systems that battle extreme outdoor conditions.
The Key Components of a Geothermal System
1. Ground Loop System
The ground loop is a series of pipes buried underground or submerged in a body of water. A water-based solution (often with antifreeze) circulates through these pipes, absorbing or rejecting heat depending on the season.
There are two main configurations:
Closed-loop systems: The liquid flows continuously within closed-loop piping. These can be installed horizontally (in trenches) or vertically (in drilled boreholes).
Open-loop systems: Groundwater itself is pumped directly from a well, circulated through the system, and then discharged back into the ground.
2. Heat Pump Unit
The heat pump inside the building contains a compressor, heat exchanger, and expansion device. In heating mode, it extracts heat from the loop fluid and transfers it to the indoor air. In cooling mode, it reverses the cycle, pulling heat from indoors and moving it into the ground.
3. Distribution System
In the end, the treated air is delivered through ducts or radiant heating networks. This stage functions much like a traditional HVAC system but requires less energy because the heavy lifting is done by the earth’s stable temperature.
Seasonal Operation
Heating Mode
In winter, the loop fluid absorbs thermal energy from the earth. The heat pump compresses this low-grade heat to a higher temperature, which is then used to warm the building through forced air or radiant systems.
Cooling Mode
In summer, the process reverses. Indoor heat is absorbed by the fluid and released back into the cooler earth. Unlike conventional air conditioning, geothermal cooling doesn’t dump heat into hot outdoor air, which makes it more efficient and consistent.
Efficiency and Cost Savings
Geothermal heat pumps can deliver three to five units of heating or cooling for every unit of electricity consumed. This results in energy reductions of 30–70% compared to conventional HVAC units.
While the upfront installation costs are higher due to drilling or excavation, operating costs are significantly lower. For homeowners and building operators, this often means payback periods ranging from 5 to 10 years, followed by decades of reduced utility bills.
Practical Considerations for Homes and Buildings
Space Requirements
Horizontal loop systems need more land area, making them ideal for suburban or rural homes.
Vertical loops require drilling but are suitable for buildings with limited land.
Soil and Rock Conditions
The type of ground (clay, sand, rock) affects drilling costs and heat transfer efficiency.
Longevity
Ground loops can last 50+ years with minimal maintenance.
Indoor units typically last 20–25 years, longer than conventional HVAC systems.
Environmental Impact
Geothermal technology cuts greenhouse gas output by minimizing reliance on fossil fuels.
They also remove the need for outside units, which decreases noise levels and enhances appearance.
Why Geothermal Heat Pumps Are Worth Considering
For both homeowners and building managers, geothermal heat pumps represent a long-term investment in energy efficiency, comfort, and sustainability. They offer:
- Consistent indoor climate control year-round
- Lower operating costs after initial installation
- Long equipment lifespan
- Significant reductions in carbon footprint
As energy prices rise and regulations tighten, these systems are moving from niche to mainstream in residential and commercial markets.
Final Thoughts
Geothermal heat pumps harness one of the most reliable energy sources we have—the earth itself. By understanding how they work and what’s required for installation, homeowners and building professionals can make informed decisions that balance upfront investment with decades of comfort and savings.
